Parts for Delta 40-560 Type 2 scrollsaw

[Dust collector]

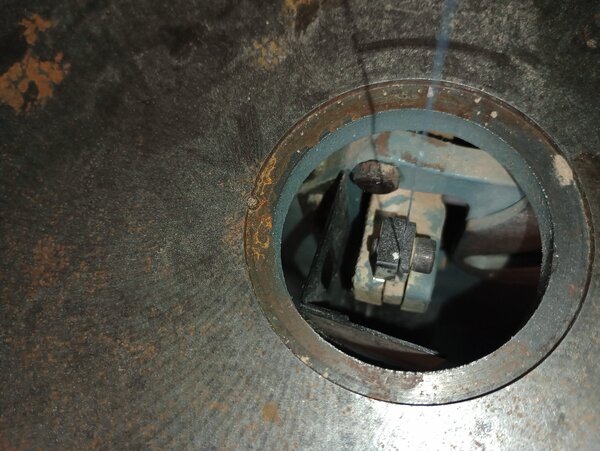

Newbie here. I have inherited an older Delta scrollsaw that is missing the bottom clamp to mount a saw blade.  All of the sources I have looked at say this part is discontinued.  Does anyone in here know of a source for these old parts or have a workaround for this?  The model number is 40-560 Type 2.  I have included some pictures of the saw and also where the missing part goes if that helps. Thanks for any help. I'm hoping to make this into a retirement hobby.

Edited December 27, 2024 by Dust collector

[kmmcrafts]

I rebuilt one just like this that my father bought new back in the late 1980's.. I rebuilt in 2005 and many parts back then were discontinued. I was able to get NOS parts eventually and restore the machine. IF memory serves correct someone bought out a bunch of parts from a dealer and he was selling them online tool website.. I think it was called Mikestools.com ? but not certain.. He may not be around anymore as that was a long time ago. Basically search eBay and garage sales for parts as what is out there in the used market is about the only choice you have. Good luck

[JTTHECLOCKMAN]

Are those the old clapper type holders?



https://www.renovoparts.com/1346120-blade-clamp-for-delta-power-tools/



If you have the manual that show parts and the numbers, post the number of the part you are looking for here.  Or if you have a picture of the part from the manual then show that too. Help us help you.

Edited December 27, 2024 by JTTHECLOCKMAN

[Wichman]

This exact saw is my backup saw after it being my primary saw for 20+ years. Here are some pictures and some data about the parts for the bottom clamp. Hex screw and nut threads are 10 x 32. Nut dimensions are 1/2 x 1/2 x 3/16". Rod to hold clamp in place is 3/16" diameter. Do you have the special tool for the bottom clamp. You can make do with a rod and Allen wrench. I used an extendable magnet tool to hold the nut in place during removal and replacement. Length of screw threads 7/16". Size of original Allen wrench 5/32"

Special tool:

Nut placement installed:

Nut and screw removed from machine:







[Dust collector]

That looks like my saw. At first I thought that it wasn't because of the shadow caused by the blade. I thought that the part was cut at an angle.  Silly me.  Looks like all I need is the square nut and the m-5 bolt which is easy to find.

Thanks for your help!

[Dust collector]

I found this picture of the lower blade clamp online. I need parts 48-52. Already have 49 and 52 on machine, 48 is an easy get, so the only part missing is the square nut and I believe I found that online.  Thanks for all the help!

[JTTHECLOCKMAN]

http://vintagemachinery.org/pubs/1141/28330.pdf





https://www.ereplacementparts.com/delta-40560-type-1634-scroll-saw-parts-c-3275_3505_14017.html?msockid=39e1187e07d660fa2b910b5f06ff6132
