Corel panel divider

[grosa]

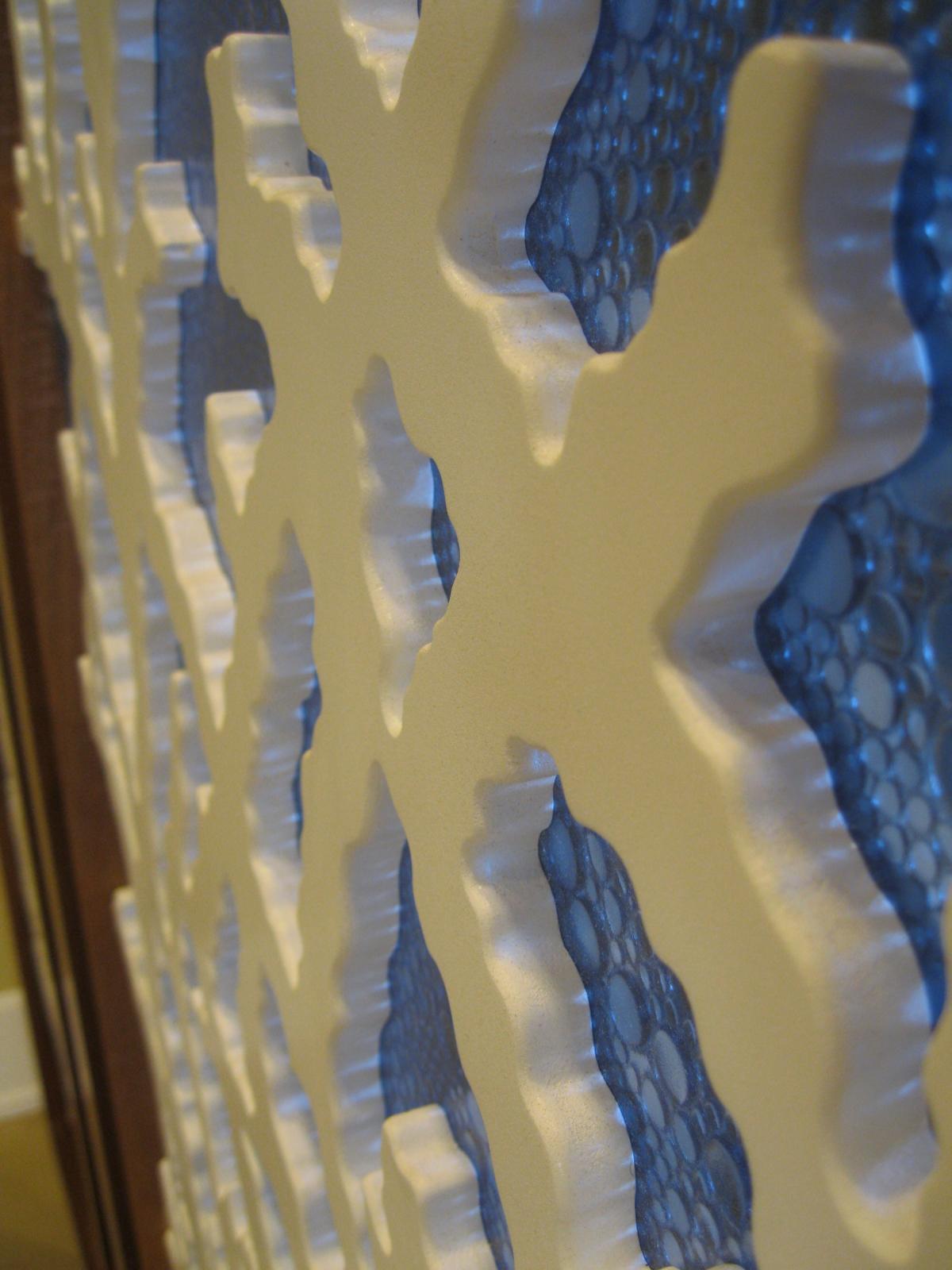

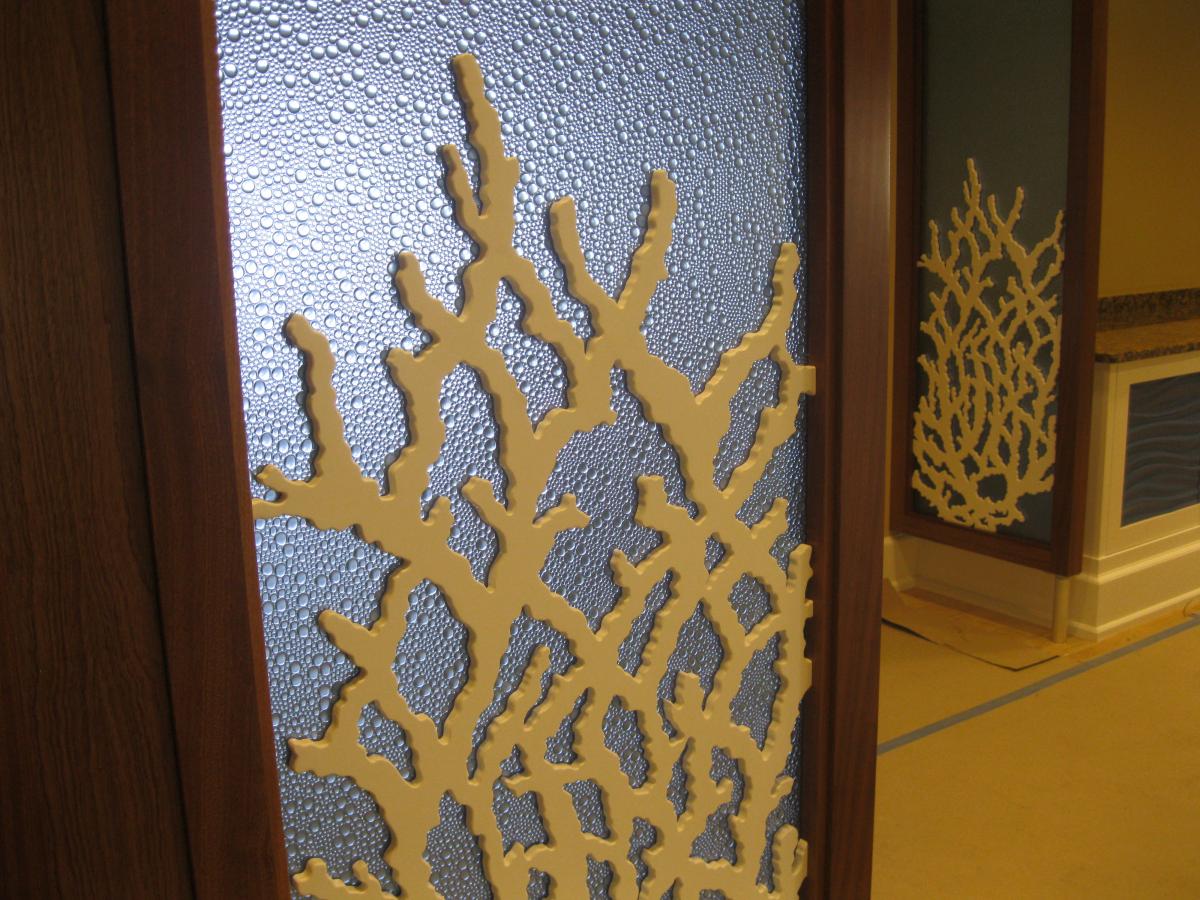

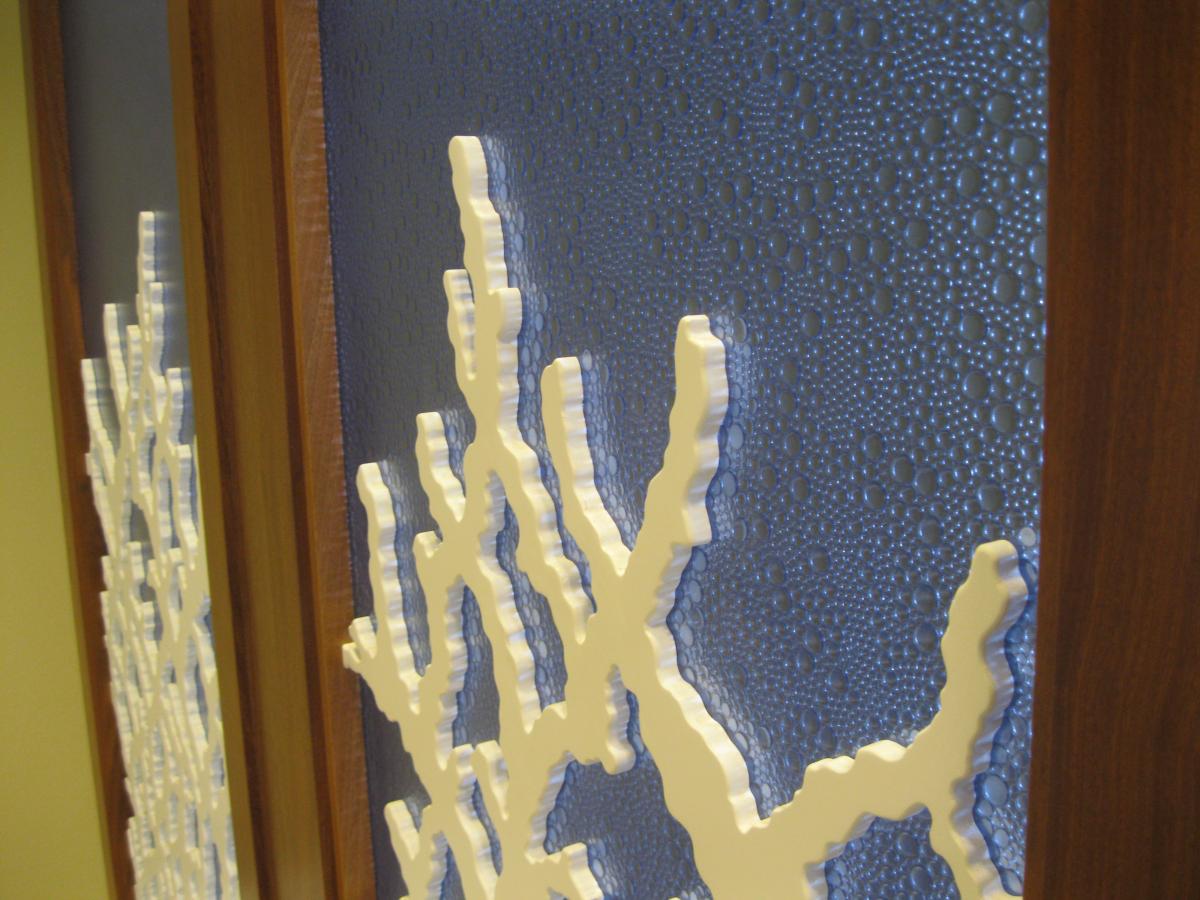

The divider frame is 8' tall x 30" wide x 3" thick. The wood is Sepele. The blue bubble background is 1/4" plastic. and the corel is 1/2" Sentra. The frame was milled from solid wood. To cut out the coral, I first drew it out on a piece on 1/4" plywood then I cut out the perimeter. Then I cut it into 4 parts. When I was done cutting it on the scroll saw I pin nailed it to a piece of 3/4" plywood and made a cutting template for my pin router. It took several hours to cut it on the scroll saw. It took 6 min. to cut it on the pin router. After cutting it out I routed an 1/8" roundover on all the edges, then it was painted and glued to the bubble plastic with Weld-on glue.

[amazingkevin]

Architectual genius !,museum quality !,better than it has to be !You are one smart cookie !Really really looks great !

[Wilson's Woodworking]

Really cool Idea!! That would work on the outside of the shower door in my guest bathroom. Thanks for sharing not only the finished product but also the process.

  :thumbs:

[Scrappile]

Really nice looking!

[Multifasited]

Beautiful ,Some thing tells me you don't use a $1-2.98 scroll saw !!

[oldhudson]

Very nice.



With sepele being a endangered wood and protected species, how do you obtain it?

Edited December 2, 2014 by oldhudson

[grosa]

Amazingkevin, Thank you.

Wilson, Thank you and I would replace the Sapele with something not wood.

Scrappile, Thank you.

Multifasited, Thank you, I have a 226 RBI scroll saw.

oldhudson, Thank you. In Florida you can buy it from lumber yards.
