Hi all,

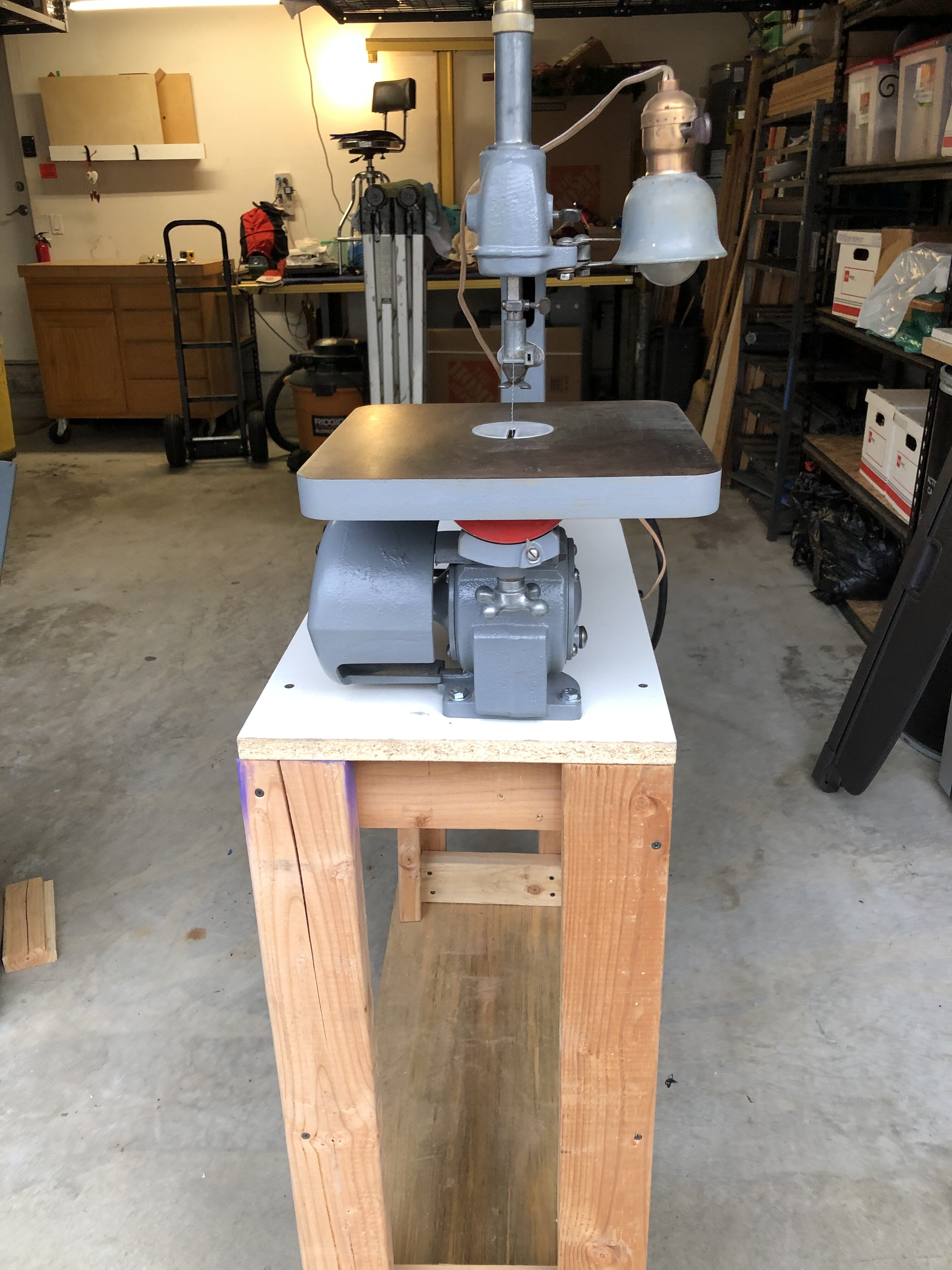

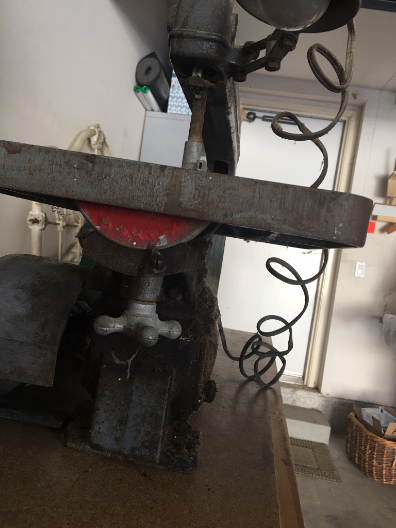

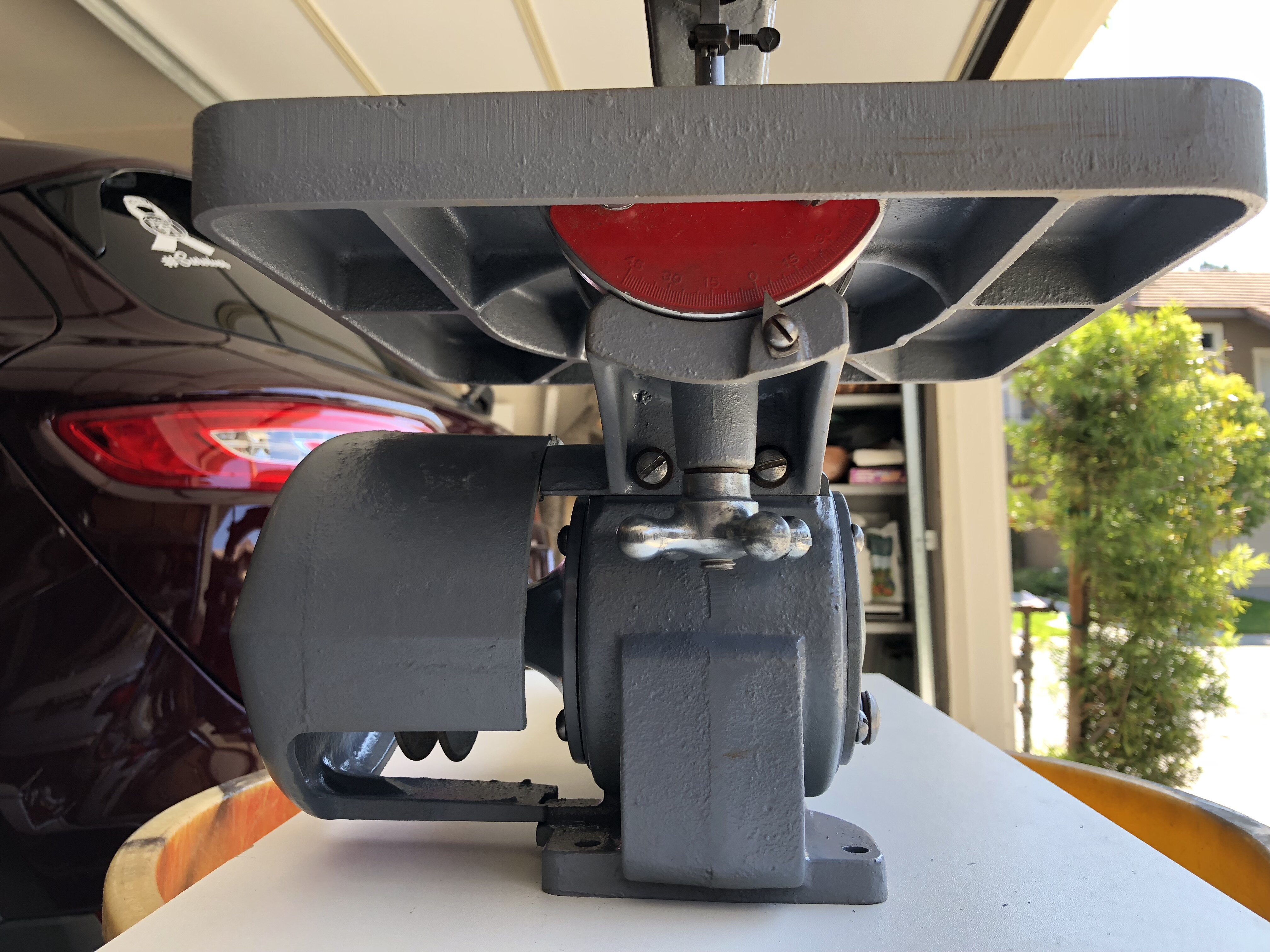

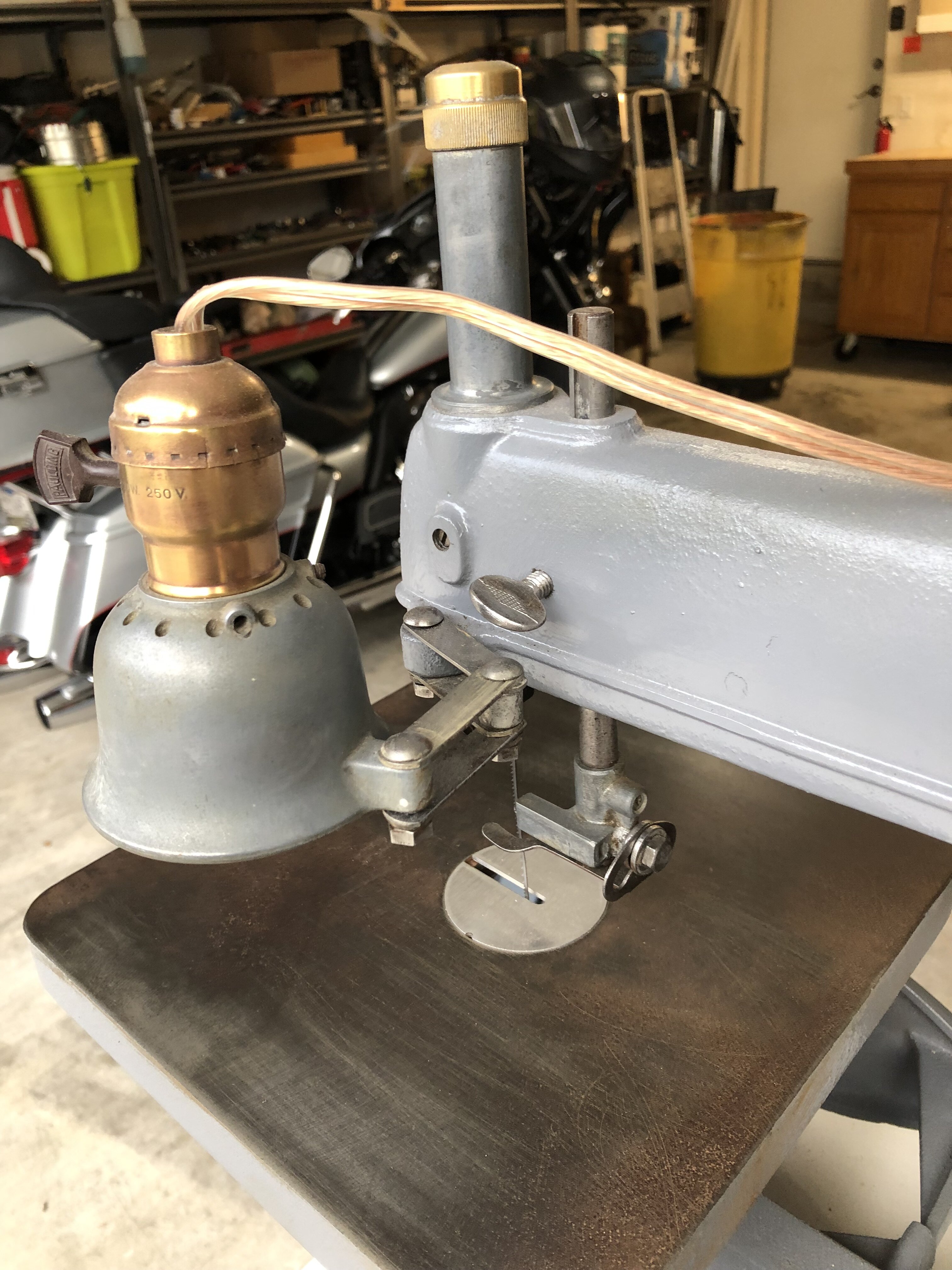

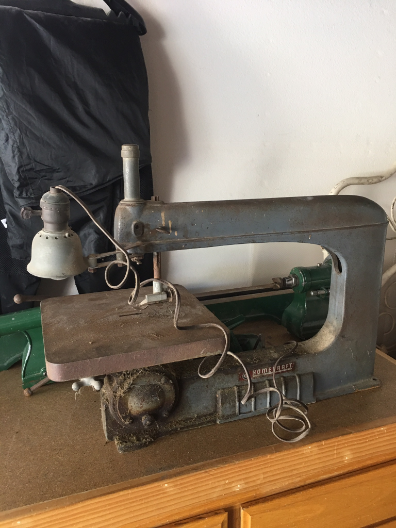

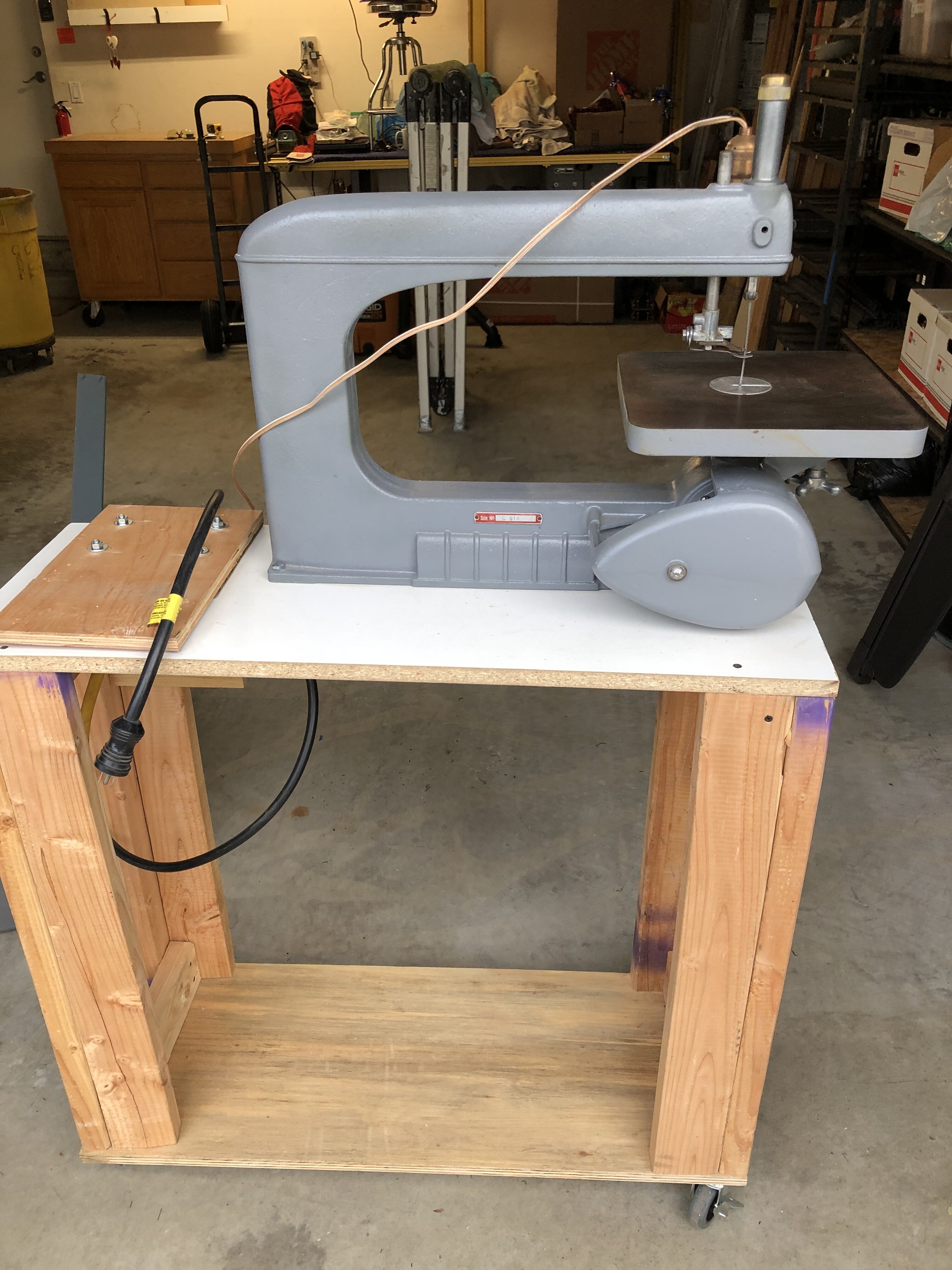

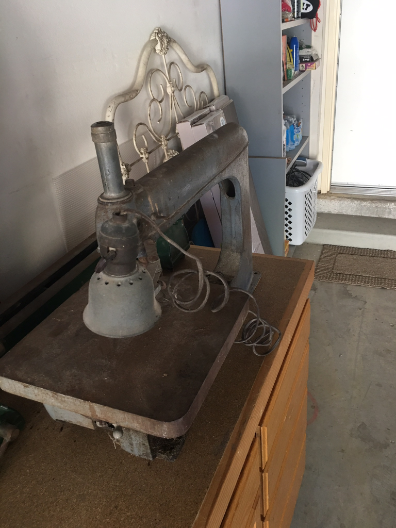

I just discovered the forum and thought I'd join and hopefully get some ideas and information. I've got an old Delta Homecraft 40-110 scroll saw that I've restored. It's close to as old as I am (I'm 78) so it doesn't have all the fancy new gadgets on it like a lot of new saws. It's running off a G.E. 1/4 hp motor that turns at 1,425 rpm. According to the manual the cutting speed, depending on the type of wood I'm cutting, should be between 800 and 1,275 strokes per minute. Right now I have a 3.5" pulley on the motor and a 4" one on the saw. According to my pulley computation spread sheet that gives me 1,245 rpm at the saw pulley. Since the saw makes one stroke per revolution that's 1,245 spm. I was thinking about using my variable speed controller in between the power outlet and the motor plug. That would allow me to slow down the saw to pretty much any speed I wanted. Does this sound like a reasonable step or should I just find a 2 step pulley for the saw?

For now I was planning on using it to make toys for the grandchildren. Toy trucks etc. But some of those patterns of the big trucks that hang on the wall like pictures look really great and one of the grandsons LOVES trucks. The question is, some of the plans and patterns I see on the site. Would these more intricate patterns be possible with this saw or do I need one of the newer saws to cut these types of patterns?

Joe

[rjweb]

Welcome to the village from Texas, RJ

[preprius]

it sounds like you will remember a lot from this village.  You can definitely see new ideas.

We have a good village here and like to answer questions.

Edited 12 hours ago by preprius

[garryatpa]

Welcome to the Village Joe from northern Saskatchewan , Canada.   You don't mention if you are using pin end blades or pinless blades. If you do any fretwork or other pieces that need to have smaller openings sawn out you need a saw that takes pinless blades.   I started with a Delta saw that ran at about 1700 rpm (direct drive) which was too fast for my liking.     I moved the motor to the back of a 3/4 plywood platform and mounted a shaft on pillow blocks with a 3 inch pulley and the motor had a 1 or 1 1/2 inch pulley which slowed the speed down to about 900 spm, if I remember correctly.  I  was much more comfortable with this setup.  As far as using a speed control  on your saw check to see if your motor will accept it or you may be liable to burn out your motor.



Garry

[Scrolling Steve]

Welcome to the Village!

[Wichman]

Welcome to the village from SE Idaho

[jerry walters]



welcome to the Village from Colorado.

Jerry

[daveww1]

welcome to the village

[Denny Knappen]

Welcome to the Village forum from Tennessee

[Joe W.]

You are in the right place.

Welcome from Delaware.

[OCJoeR]

Thanks for all the "welcomes". This sure seem like a great community forum. As an old retired guy I've been going into several woodworking forums and this is, by far, the friendliest.

Garry, my Delta Homecraft can take either pinned or non-pinned blades. I have a couple pinned blades but mostly Pegasus non pinned blades.

I've been looking at the pattern library and I was thinking about trying one of those wall hanging things (I'm not sure what the correct name for them is) for one of my wife's grandsons. He love trucks and I saw one of a monster truck I think that he'd love. I haven't downloaded any of the patterns yet but I'm assuming that the black areas are to be cut out leaving the other areas to either be stained or painted, or just left bare.

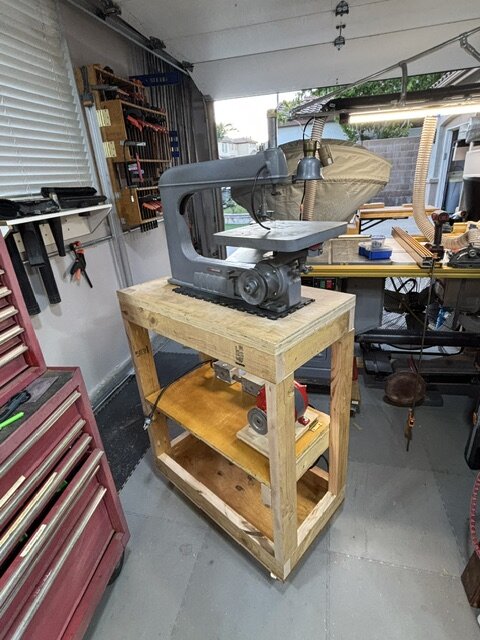

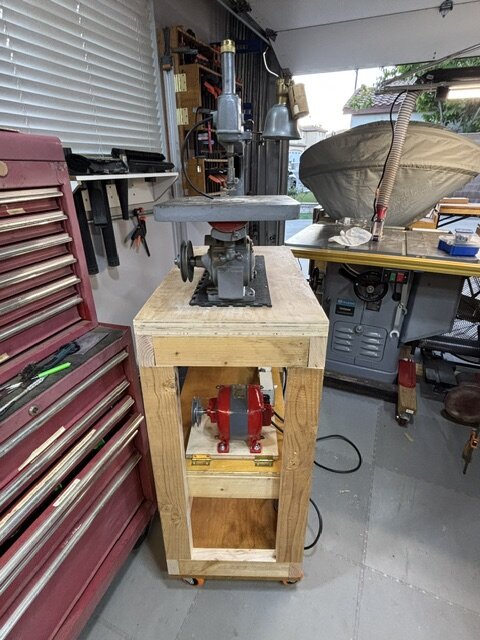

I tried the variable speed control I just bought and it's sort of twitchy. The motor doesn't start up until it's almost 60% up on the dial. It does hold the slower speeds pretty well. But I did find another controller as I was sifting through my "tool stuff" so I may try that one and see if I get better control. I do have a smaller pulley for the motor that would cut the speed in half but then I'd have to either get another belt or remount the motor so it can be slid back further to tension the belt. It does vibrate quite a bit had full speed but I think that's due to the wheels that all my tools are mounted on. I'm working in a 16' x 10' garage so everything has to move. I'm going to see if I can get those wheels that are on springs that flip up so that the base ends up flat on the floor when you get it into the place you want it. The motor is currently mounted on a hinged 3/4" plywood base. The hinges are screwed into the table so I can lift the motor up to get the belt off. I'm thinking this adds to the bouncing around quite a bit. I'll redo the top of the table (2 pieces of 3/4" plywood) to allow me to slide the motor forward and backward to accommodate different size pulleys. That may solve 2 issues with one change. This is an old table I've had for a while so once I get the saw set up so it's working properly and not shaking I think I'll build a new one out of nice clean 3/4" ply.

Thanks again for all the friendly welcomes and encouragement and ideas. Looking forward to making lots more sawdust.

Joe
